6 button transmitter

ST-4008

8 button transmitter8 button transmitter8 button transmitter

  • 8 button transmitter can be used for different purposes in various industries.

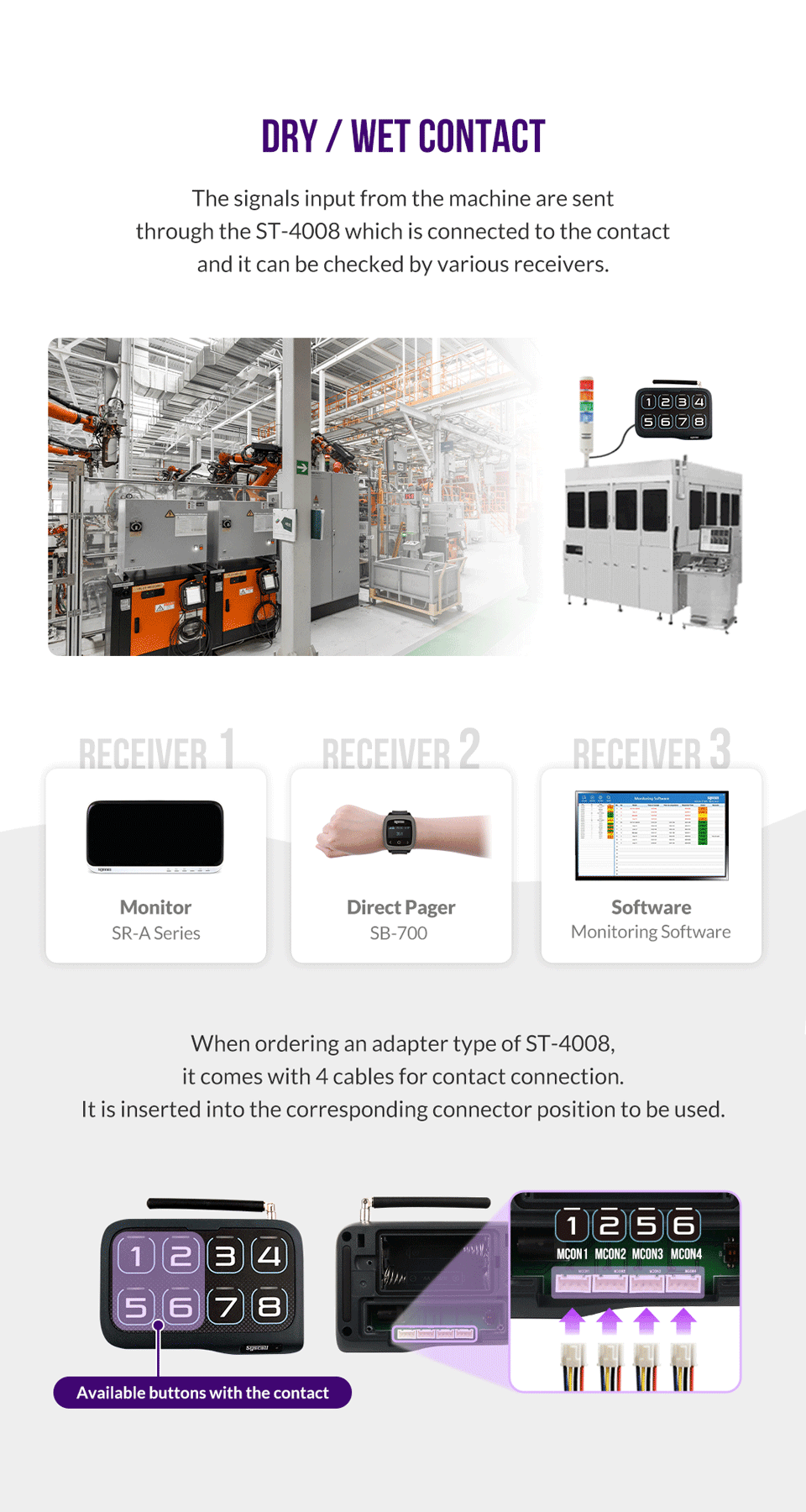

  • It can be connected to dry or wet contact with the cable provided.
  • 2 types of power supply – can be selected from battery or adapter type.
  • When used as a Server paging transmitter, able to call a direct pager up to 8 staff.


Request More Info

RELATED PRODUCTS

PRODUCT DETAIL VIEW

ST-4008-d1
ST-4008-d2
ST-4008-d3
ST-4008-d4
ST-4008-d5
ST-4008-d6
ST-4008-d7

PRODUCT SPECIFICATION

Description

  • 8 button transmitter can be used for different purposes in various industries.
  • It can be connected to dry or wet contact with the cable provided.
  • 2 types of power supply – can be selected from battery or adapter type.
  • When used as a Server paging transmitter, able to call a direct pager up to 8 staff.

Specification

Number of buttons 8
Dimension W113 x L89 x H28mm
Weight 120g
Color Navy
Frequency FSK/433.42MHz
Power Source AA Battery 2EA or DC 12V/1A
Compatibility All Syscall receivers and the repeater

Features

  • 2 types of button functions
    ① CALL: All 8 buttons for CALL function
    ② CALL / CLEAR: 4 buttons for CALL (1,2,3,4) / 4 buttons for CLEAR (5,6,7,8)
  • Dry contact connection (1,2,5,6)
  • Power supply from battery (AA) or adapter
  • Enhanced signal range with the external antenna

Benefits

  • Using in various situation
  • Improve workflow and staff productivity
  • Cost-effective wireless solution
  • Decrease response time

SYSTEM MAP

  • Each button will be registered in different purposes.

8 button transmitter

  • Each button will be registered to the designated pagers.
    (Up to 8 pagers)
    Calling servers with the assigned number.

8 button transmitter
